LYNX Commercial Charger

Specification	Details
Input Voltage	240V ±10% (Three-Phase)
Power Wiring	L1 / L2 / L3 / N / PE
Input Frequency	50 / 60 Hz
Ambient Temp. Range	−30°C ~ +50°C
IP Rating	IP65, IK08 (Indoor or Outdoor)
Connector Point	J1772 Type 1
Cable Length	25 Ft
Protection	UVP, OVP, RCD, SPD, Ground Fault Protection, OCP, OTP, Control Pilot Fault Protection
Display & Screen Size	4-inch Touch Screen
Connectivity	OCPP, WiFi, 4G, Ethernet, RFID
Certification	ETL, Energy Star, FCC
Safety & Compliance	UL2594 \| UL 2231-1 \| UL 2231-2 \| UL 2251 \| UL 62 \| UL 991 \| UL 1998 \| NFPA 70 Article 625 \| UL840 \| CSA Std. C22.2#280
Warranty	3 Years
Product Dimensions	13.8” × 9.8” × 5.1”
Product Weight	22.5 lbs

Specification

Details

Input Voltage

240V ±10% (Three-Phase)

Power Wiring

L1 / L2 / L3 / N / PE

Input Frequency

50 / 60 Hz

Ambient Temp. Range

−30°C ~ +50°C

IP Rating

IP65, IK08 (Indoor or Outdoor)

Connector Point

J1772 Type 1

Cable Length

25 Ft

Protection

UVP, OVP, RCD, SPD, Ground Fault Protection,
OCP, OTP, Control Pilot Fault Protection

Display & Screen Size

4-inch Touch Screen

Connectivity

OCPP, WiFi, 4G, Ethernet, RFID

Certification

ETL, Energy Star, FCC

Safety & Compliance

UL2594 | UL 2231-1 | UL 2231-2 | UL 2251 | UL 62 | UL 991 | UL 1998 |
NFPA 70 Article 625 | UL840 | CSA Std. C22.2#280

Warranty

3 Years

Product Dimensions

13.8” × 9.8” × 5.1”

Product Weight

22.5 lbs

Description

Workplace, Fleet, and Multifamily

Transform your property with the MÖTEN EV Charging Station LYNX. Don’t get left behind—gain a competitive edge by integrating MÖTEN EVFC EV Charging Stations. Offer this essential service to your employees and customers while championing a greener, more sustainable future. Seize this opportunity now to supercharge your property!

LYNX comes with the Free eMÖTEN operating system and a phone app, saving you $420! This feature sets us apart. eMÖTEN works with OCPP 1.6 and 2.0.1, ensuring a smooth experience for all your employees and drivers

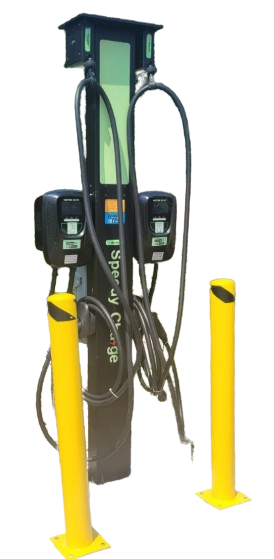

LYNX Station Includes: Dual EV Chargers, Dual Pedestal with Wire management. eMÖTEN Software with payment Gateway
